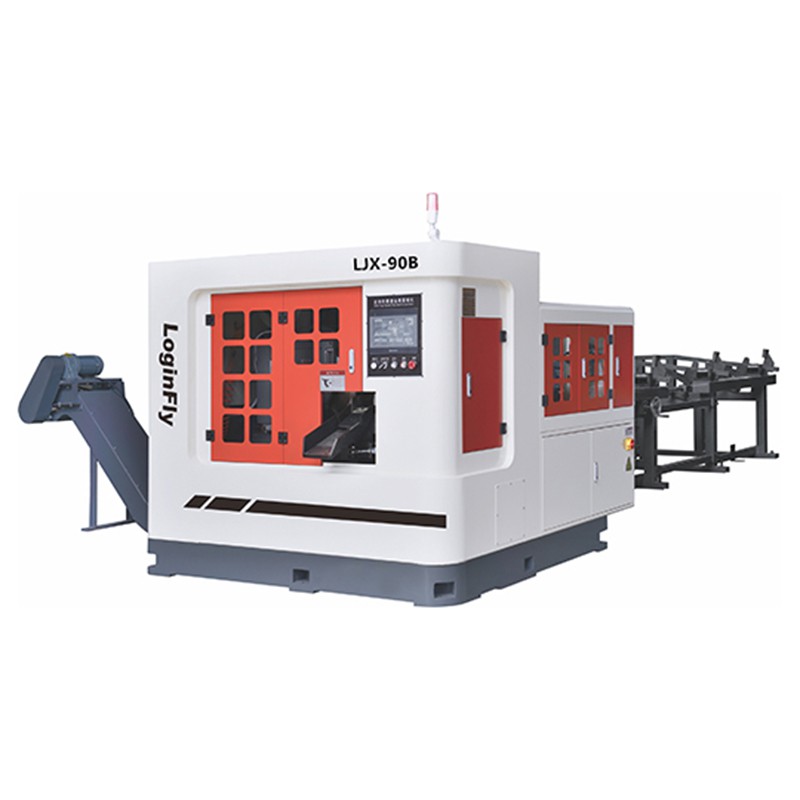

Cutting Metal Circular Saw Machine
Round bar/tube:Φ20-90mm
Square bar/tube:20-70mm
TCT carbide tipped saw blade type:Φ315*T2.3mm
Features
Product introduction
Cutting Metal Circular Saw Machine is a high-efficiency metal cutting equipment suitable for precision cutting of round bars, square bars and tubes.
Product specifications
|
Model |
LJX-90B |
|
|
Cut-off capacity |
Round bar/tube |
Φ20-90mm |
|
Square bar/tube |
20-70mm |
|
|
Saw head spindle |
TCT carbide tipped saw blade type |
Φ315*T2.3mm |
|
Saw blade rotation speed |
20-180rpm |
|
|
Motor Spindle driving motor |
7.5KW/6P |
|
|
The short tail length |
A type |
20mm+ cutting length |
|
B type |
70mm+ cutting length |
|
|
Hydraulic device |
Work driving pressure |
70kg/C㎡(7MPa) |
|
Tank capacity |
90L |
|
|
Machine dimension-weight |
Dimension(L*W*H) |
7070*2700*1750mm |
|
Weight(main body+shelf) |
4500kgs |
|
Product features
High-Precision Cutting
A Φ315mm TCT carbide saw blade with an adjustable saw blade speed of 20-180rpm achieves high-precision cutting of round and square metal bars and tubes.
Powerful Power System
Equipped with a 7.5kW/6P motor to drive the spindle, it provides stable cutting force and sustained high-load operation.
Efficient Hydraulic Control
The hydraulic system operates at a pressure of 7MPa, and a large 90L fuel tank ensures uninterrupted cutting.
Product applications
Mechanical Processing: Cuts various metal bars and tubes for the production of mechanical parts.
Steel Structure Manufacturing: Cuts square tubes, round tubes, and steel bars for structural parts and frame processing.
Automotive Manufacturing and Parts Processing: Suitable for high-precision cutting of shafts, rods, and tubular parts.
Batch Metal Fabrication: Suitable for production lines requiring high-efficiency, stable cutting with minimal manual intervention.
why choose us
Extensive Experience
Founded in 1985, we have specialized in metal sawing equipment manufacturing for over 40 years.
Strong Production Capacity
We have a modern production facility equipped with CNC machining and assembly lines, producing over 1,000 machines annually and delivering over 10,000 units.
Strict Quality Control
We are ISO9001 certified, and our products carry international certifications such as CE, SGS, and ECM. All products undergo rigorous testing before shipment.
Global Presence
Our products are exported to the Middle East, Europe, South Asia, and other regions, serving metalworking and machinery manufacturing customers worldwide.
Comprehensive Service
We provide selection, installation, training, maintenance, and remote support to ensure efficient equipment operation.
