Horizontal Band Saw Machine
Shanghai Loginfly Sawing Technology Co.,Ltd. : Your Trustworthy Horizontal Band Saw Machine Manufacturer in China！
Established in 1985, our company is a professional manufacturer of metal cutting saw machines.
Quality Assurance
Our products are ISO9001 certified, and our sawing equipment is CE-certified, complying with EU standards for mechanical safety and electromagnetic compatibility.
Advanced Production Equipment
Our workshop features multiple advanced CNC production lines and mechanical assembly lines, enabling simultaneous assembly and commissioning of multiple vehicle models.
Wide Sales Area
Our products have been exported to countries in the Middle East, Europe, and South Asia.
Customization Available
With over 20 years of OEM experience, we can customize the equipment structure, control system, and cutting parameters to meet your needs.
Introduction
Horizontal Band Saw Machine is a machine tool specifically designed for metal cutting, with a saw blade that cuts the workpiece in a horizontal, reciprocating motion. Horizontal band saws come in various models and cutting capacities. We can recommend the most suitable model based on the customer's cutting material, diameter, and production requirements, ensuring they avoid purchasing unsuitable equipment.
Specification
|
Cutting capacity 0°(round) |
330mm |
|
Cutting capacity 0°(square) |
330*330mm |
|
Blade speed(m/min) |
22/40/60/80 |
|
Blade size(mm) |
34*1.1*4115 |
|
Main Motor(kw) |
4 |
|
Hydraulic Motor(kw) |
0.75 |
|
Work piece Clamping |
Hydraulic Vise |
|
Blade Tension |
Manual |
|
Chip conveyor |
Manual |
|
Main Drive |
Worm wheel drive |
|
Material feed |
Automatic |
|
Machine size |
2220×2260×1650 |
|
Machine weight |
2100kg |
Horizontal Cutting Structure
The saw head moves horizontally while the workpiece remains firmly clamped, ensuring stable and straight cuts for bars, pipes, and profiles.
Hydraulic Downfeed Control
A hydraulic system controls the cutting pressure and descent speed of the saw head.
High-Precision Clamping System
Heavy-duty hydraulic or mechanical clamps hold the material securely during cutting.
Adjustable Cutting Speed
Variable blade speed allows efficient cutting of different materials such as carbon steel, stainless steel, and aluminum.
Angle Cutting Capability
Selected models support fixed or adjustable angle cutting, such as 45° and 60°.
Steel Service Centers
Horizontal band saw machines are widely used to cut carbon steel bars, alloy steel, and structural steel into precise lengths.
Metal Fabrication Workshops
Used for cutting pipes, tubes, and profiles before welding or machining.
Machinery Manufacturing
Applied in cutting raw metal materials for machine parts and components.
Automotive and Auto Parts Industry
Used to cut shafts, frames, and metal components for vehicles.
Customization Options
Cutting Capabilities
Maximum cutting diameter and cutting width are customizable, typically ranging from small cross-sections (Ø150 mm) to large solid bars or bundles (Ø800 mm or larger).
Cutting Angle Configuration
Fixed angle cutting (45°, 60°, 90°) or continuously adjustable angle cutting with a rotating saw head or turntable.
Saw Blade Type and Specifications
Customizable options: Saw blade width, thickness, tooth pitch (TPI), and blade material can be selected based on material hardness.
Drive System and Motor Power
Motor power can be configured as needed, from low-power models for lightweight materials to high-torque motors for solid steel and large cross-sections.
Hydraulic System Configuration
Adjustable hydraulic feed pressure, automatic pressure control, and customizable hydraulic flow settings.

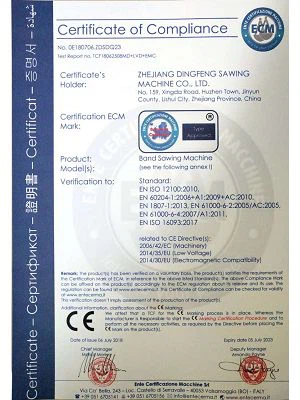

Certificate
